Solar charge controller with LCD display for photovoltaic applications controlled by microcontroller able to operate automatically both for 12V to 24V. It allows to provide the right level of current preserving batteries from an excess of charge or discharge in order to extend as long as possible the lifecycle. Warning! Only for use with 12 and 24V solar panels.

Features

Battery protection for inversion polarity.
Auto protection when current exceed
Autoprotection when the load current exceeds the reach of the regulator.
Short-circuit protection
Overload protection.
To prevent the complete discharge of battery, the controller automatically disconnect the load to a certain voltage, which cannot be less than 11.2 V for 12V battery and 22.4V for 24 V batteries.

Technical specification

Rated voltage: 12 V / 24 V auto
DC output voltage: 12 V
Voltage of solars panels: < 50 V
Float charging voltage: 13,7 V / 27,4 V
Low voltage protection: 10,5 V / 21 V
Load voltage recovery: 12
No load loss: <= 10 mA
Loop voltage drop: <= 170 mV
Temperature compensation: -4mV/Cell/°C
Operating temperature: -20°C to +60°C
Storage temperature: -30° to +70°C
Humidity requirements: < 90%, no condensation
Dimensions(mm): 217x158x95
Weight: 590 g

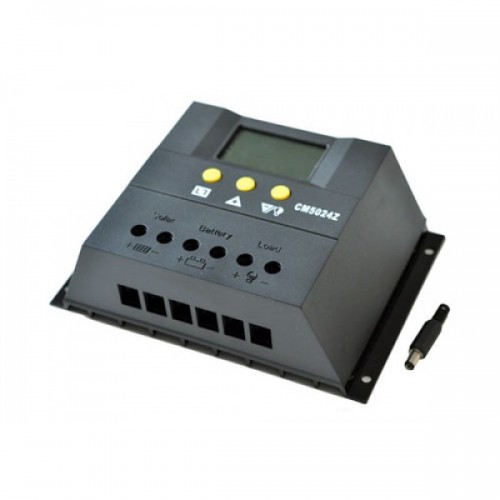

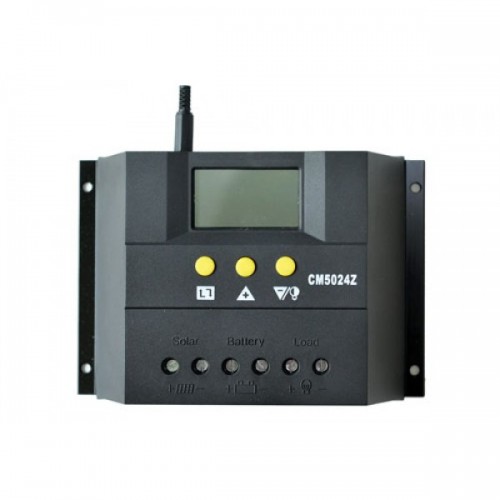

Solar charge controller - 50 A

Brand: Futura Group Srl
Product Code: 2846-SOLAREG50

Discontinued product
