This PoE HAT (F) is an expansion module designed for the Raspberry Pi 5 and the Compute Module 5 (CM5). This Power over Ethernet (PoE) accessory allows you to power and connect your Raspberry Pi to the network using a single Ethernet cable, eliminating the need for a separate power supply.

Compliant with IEEE 802.3af/at standards, the PoE HAT provides both power and network connectivity, simplifying cable management. The module features a high-efficiency isolated DC-DC converter that ensures stable and safe power delivery to the Raspberry Pi, even under heavy loads. It also includes an active cooling system, composed of a high-speed fan and a metal heatsink, to enhance heat dissipation and ensure optimal operation during extended use.

This PoE HAT (F) mounts directly on top of the Raspberry Pi 5 via the 40-pin GPIO header, compatible with most Raspberry Pi HAT accessories. It features a 5V output (max 4.5A) and a 12V output (max 2A), allowing additional devices to be powered as well—making the PoE HAT ideal for projects that require both power and network connectivity in industrial, home automation, or development environments.

With this PoE HAT (F), the Raspberry Pi 5 can be powered and connected to the network through a single Ethernet cable, simplifying wiring and reducing clutter. This module is especially useful in automation, server, and other applications that require efficient and safe power management.

Important note: The Raspberry Pi 5 board is not included with the PoE HAT module and must be purchased separately.

The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5 / CM 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.

• Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5 / CM 5
• PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant
• Fully isolated switched-mode power supply (SMPS)
• Onboard high speed active cooling fan, with metal heatsink, better heat dissipation

• PoE power input: 38V ~ 57V DC in
• Power output: GPIO header: 5V 4.5A (MAX)

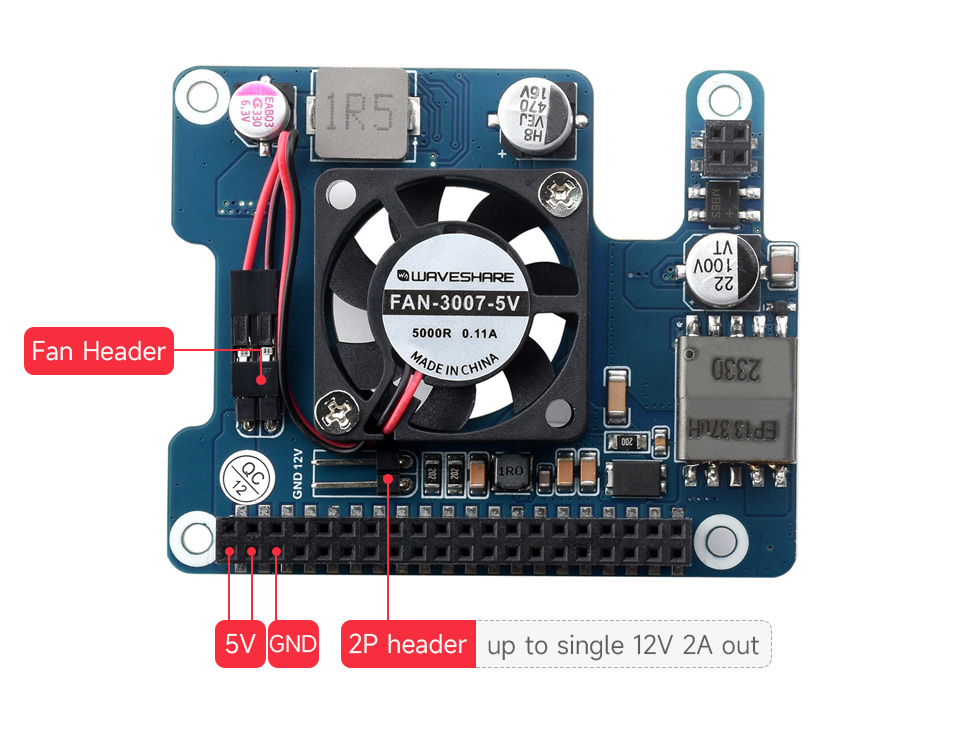

• 2P header: 12V 2A (MAX)
• Dimensions: 56.5 × 70.0mm
• Network standard: IEEE 802.3af/at PoE

 Power Over Ethernet HAT For Raspberry Pi 5 / CM 5, Supports 802.3af/at Network Standard

12V and 5V power outputs to support more peripherals

Standard Raspberry Pi 40PIN GPIO stackable header, allows connecting other HATs

Providing both network connection and power supply for your Raspberry Pi in one cable

5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power)
be able to power extra devices while providing stable power to Raspberry Pi

Accelerate Cooling Effect, More Stable Performance

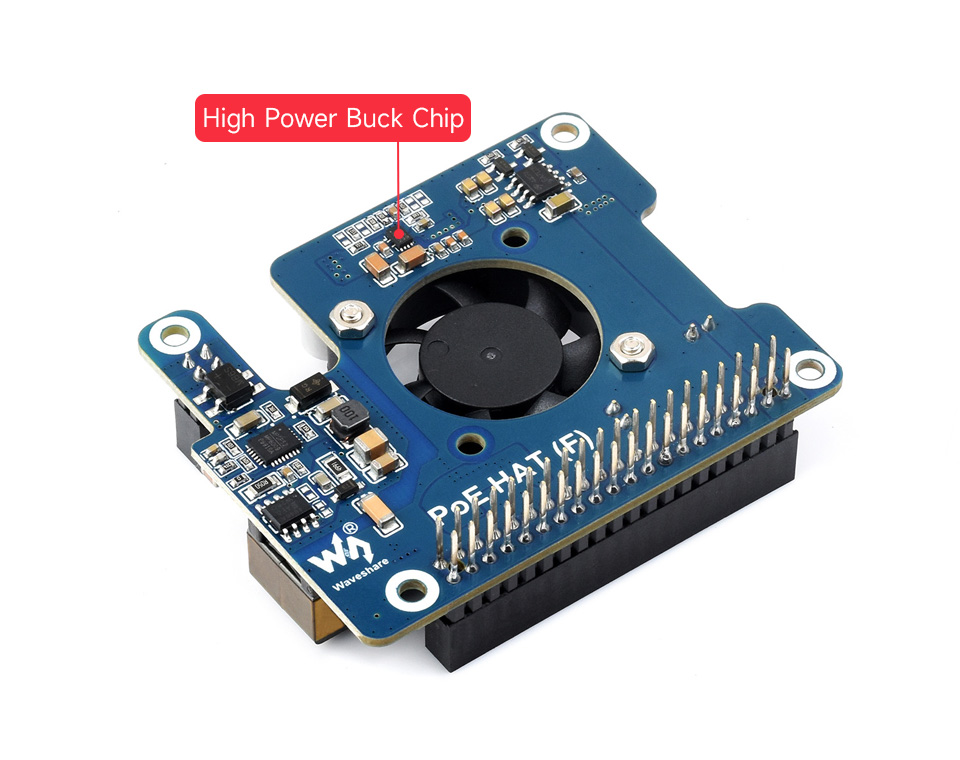

Incorporates original voltage buck chip
Providing up to 5A under sufficient heat dissipation condition

Attach the thermal tapes first, then install metal heatsink and fix the PoE HAT
