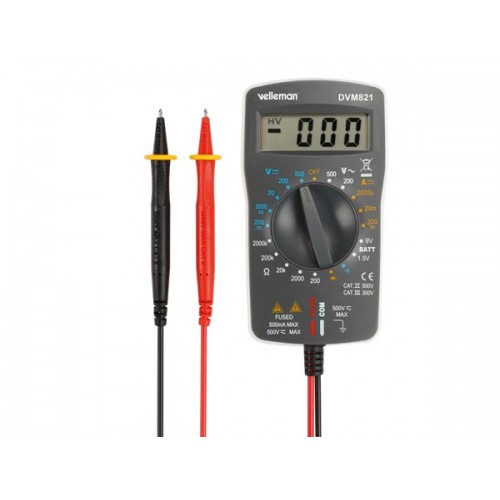

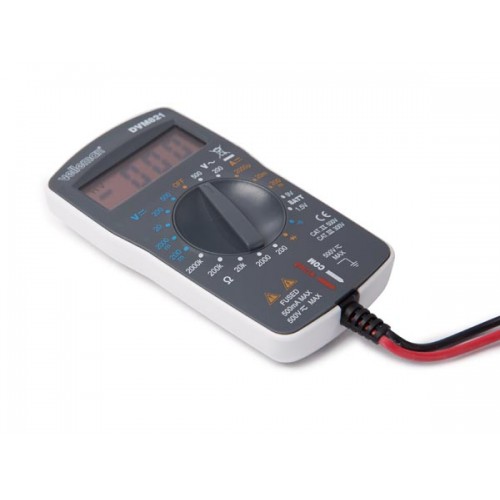

Digital multimeter with display 3 1/2 digits and integrated test leads, ideal for fast measurements in every place. Nineteen courses with measures voltages up to 500 V, currents up to 200 mA and resistances up to 2 Mohm. Included the battery tester function 1.5V and 9V, diodes and electrical continuity. It has automatic polarity detection caps on the maximum limits of range and low battery indication.
Features
DC voltage: 0-200 mV / 2000 mV/ 20 V / 200 V / 500 V
basic accuracy: ±(1.0% rdg + 2 digits) , ±(1.2% rdg + 2 digits) for 500V range
input impedance: 1MOhm
maximum input: 500V
overload protection: 500V DC or AC rms
AC voltage: 0-200 V / 500 V
basic accuracy: ± (1.5% rdg + 3 digits)
input impedance: 450 kOhm
frequency range: 40-500 Hz
maximum input: 500 V RMS
DC current: 2000 µA / 20 mA / 200 mA
basic accuracy: ± (1.5% rdg + 2 digits), ± (2.0% rdg + 2 digits) for 200 mA range
overload protection: 0.5A / 600 V fuse in mA range
