Features:
1.Input voltage: 0.9-5V DC
2.Mini PFM Control
3.Output voltage: 5V DC
4. Any DC voltage input 0.9V ~ 5V, output 5V DC voltage can be stable, with two AA batteries input to the output current of 500 ~ 600MA, single AA battery power supply output current about 200MA
5. Onboard USB female, can supply power directly to the USB interface
6. On-board input voltage indicator
7.High conversion efficiency, maximum to 96%
8.Small dimension
9. PCB size: 34 (mm) x16 (mm)

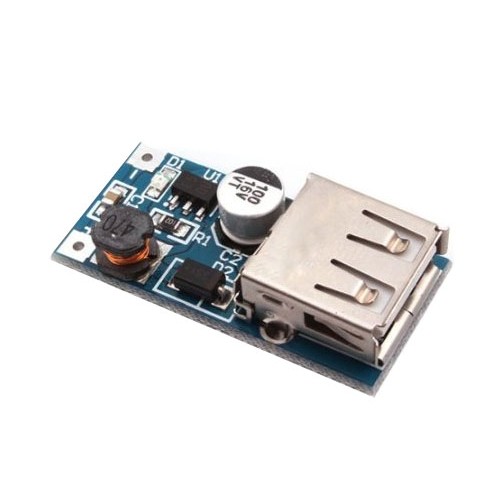

Step-up with USB output 5V
- Brand: Futura Group Srl
- Product Code: 2846-STEPUPUSB
- Availability: Out Of Stock
-
Price: 2.50€
-
- 5 or more 2.00€
- 10 or more 2.00€
- 50 or more 2.00€
- 100 or more 2.00€
Tags: step-up with usb output 5v, 2846-stepupusb, futura group srl, power module, embedded
