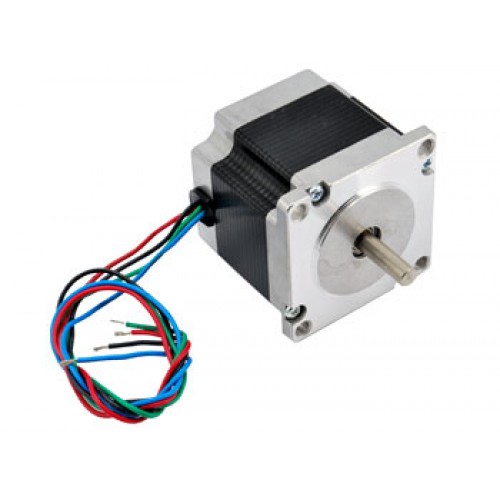

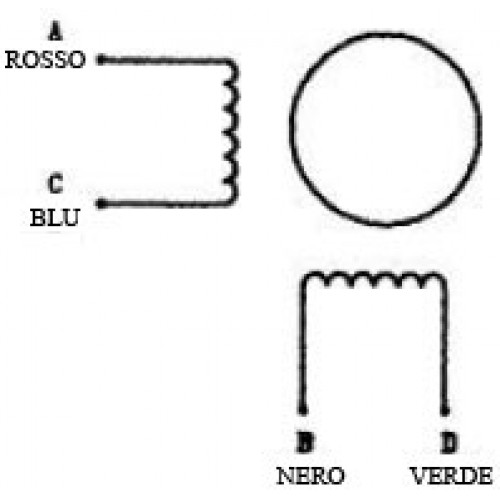

Bipolar stepper motor with a 4-wire cable.
Features:
- Step Angle (degrees) :1.8
- 2 Phase
- Rated Voltage : 12V (max 15.4V)
- Rated Current : 2,5A
- Holding Torque : 9,8 kg-cm
- Winding resistance: 1,1 Ω
- Winding inductance: 36 mH

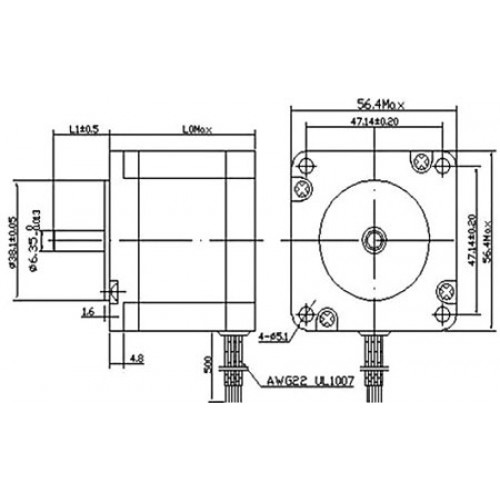

- Dimension: 56,4 x 56,4 x 54 mm
Motor Driver 2A Dual H-Bridge L298
This dual bidirectional motor driver is based on the Dual H-Bridge Motor Driver L298. The ..
Cod: 2846-L298DRIVER
Price: 5.00€
Stepper Motor Driver
This Driver is a simple board to use stepper motor, compatible with Arduino and other board that can..
Cod: 6168-EASYDRIVER
Price: 11.50€
Controller with feedback for stepper motor
Stepper motor feedback controller able to dynamically check the positioning of the ..
Cod: 7100-MOTORFISH
Price: 40.50€
Stepper motor NEMA23 - 1,8° - 2,5A
- Brand: Futura Group Srl
- Product Code: 7300-STEPMOT02
- Availability: Out Of Stock
-
Price: 36.00€
-
- 5 or more 34.00€
- 10 or more 32.00€
- 50 or more 29.00€
- 100 or more 27.00€
Tags: stepper motor nema23 - 1, 8° - 2, 5a, 7300-stepmot02, futura group srl, components
