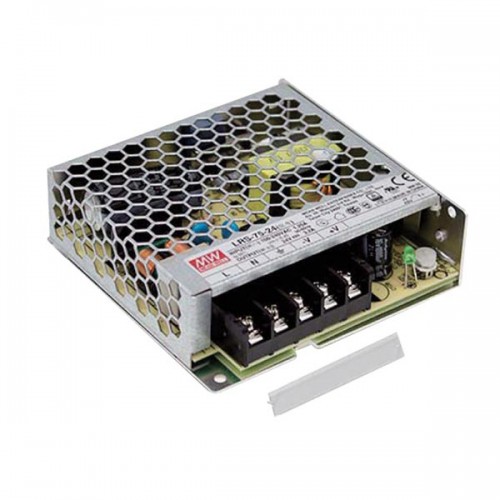

Laboratory power supply switching technology with high efficiency, long life and high reliability. Metal container, cooling system, conventionally air, input voltage: 85 to 264 Vac, 24 volt output voltage, current 3.2A, power 75W. It has LED power indicator, short circuit, overload protection , overvoltage and overtemperature. The switching technology allows to obtain a considerable reduction of weight and a high energy yield of the device.

Technical specifications

Input voltage:
- 85-264 VAC
- 120-370 VDC
- Frequency range: 47-63 Hz
Inrush current: 50A / 230Vac (cold start)
leakage current: <0.75mA / 240Vac
Output voltage: 24Vdc
Output Voltage Range: from 21.6V to 28.8V (adjustable)
Range of current: from 0 to 3.2A
Output current: 3.2A
Ripple and noise (max): 150 mVp-p
Power Output: 76,8W
Efficiency: 89%
Connection: 5 pin terminal block
Protection:
- Overload: 110-140% of the rated output power
- Overvoltage: 28.8 - 33,6V
Safety standards: UL 60950-1, EN 60950-1 TÜV approved
Insulation resistance: 100 Mohm / 500Vdc / 25°C / 70% relative humidity
Emissione EMC: conformità EN55022 (CISPR22) Class B ; EN61000-3-2,-3
EMC Immunity: conformity with EN 61000-4-2, 3, 4, 5, 6, 8, 11; EN61000-6-2 (EN50082-2)
Dimensions (mm): 99 (length) x 97 (width) x 30 (height)
Weight: 300 g
Operating temperature: -30°C to + 70°C
Humidity: 20-90% RH non-condensing
Storage:
- temperature: -40°C to + 85°C
- humidity: 10-95% RH

Documentation and links

LRS-75

Mean Well Switching-mode power supply 75W 24V

Brand: Futura Group Srl
Product Code: 8220-LRS-75-24TE
