  • Starter Kit Banana Pi

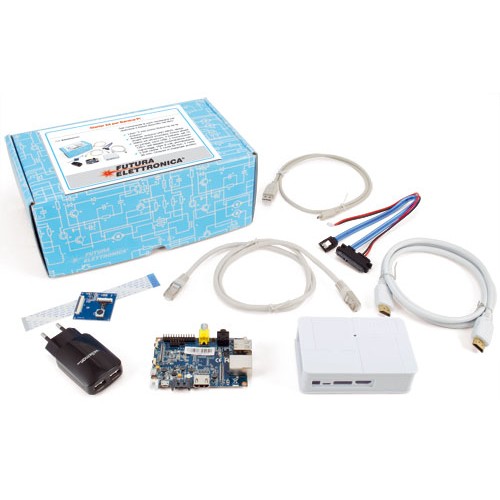

It contains everything you need to learn how to plan and carry out electronic applications with the board Banana Pi. The pack includes Banana Pi, camera for Banana Pi, Box for Banana Pi, HDMI cable 1,5 meters, USB cable M (A) / Micro (B) 0,7 meters, FTP cable CAT5E 0,75 meters, SATA cable for Banana Pi about 30 cm lenght and  switching power supply 2 ports USB - 5 Vdc / 3,1 A.

Banana Pi
Banana PI is an Open Source hardware platform which was produced to run the Elastos.org open source OS among others. Banana PI a dual core, Android 4.2 product which is much better  than the Raspberry Pi. The Banana Pi hardware runs Android, Debian Linux, Ubuntu Linux, OpenSuse linux and images that run on the Raspberry Pi and Cubieboard. Banana PI has a Gigabit Ethernet port and a SATA Socket. It can run with Android 4.2.2 smoothly. The size of Banana PI M1 is about the same size as a credit card, It can easily run games as it supports 1080P high definition video output. The GPIO is compatible with Raspberry Pi and can run Raspberry Pi images directly.
Features
  • CPU: A20 ARM Cortex-A7 Dual-Core from 1 GHz of clock
  • GPU: ARM Mali400MP2 compatible with OpenGL ES 2.0/1.1
  • SDRAM: 1 GB DDR3 shared with GPU
  • Mass Storage Devices: SD Card Max.64 GB; Slot for SATA disks up to 2 TB
  • Network: 10/100/1000 Ethernet RJ45 (USB WIFI Dongle optional)
  • Camera Input: Slot CSI module video camera (It requires a compatible camera)
  • Input: Microphone
  • Video Output: HDMI, CVBS, LVDS/RGB
  • Audio Output: Jack 3,5 mm and HDMI
  • Supply: 5 volts through Micro USB connector (DC In Only) and / or MicroUSB (OTG)
  • USB 2.0 ports:2 connected directly to the chip Allwinner A20
  • Buttons:
    - Reset near the connector MicroUSB
    - Power near the reset button
    - UBoot behind the HDMI connector
  • GPIO (not totally compatible with Raspberry Pi - 2X13 pin connector):
    -
    GPIO,UART,I2C bus,SPI bus with two chip selects,
    - CAN bus,ADC,PWM,+3,3 V,+5 V, ground.
  • LED:
    - Supply (Red)
    - Ethernet (Blue)
    - user defined (Green)
  • Remote: IR
  • Dimensions (mm): 92x60
  • Weight: 48 grams
